Taurus Revolver Shims
Taurus Spring Kits by Wolff Gunsprings
TAURUS Revolver Trigger / Hammer Shims
Standard Assortment List
Our TAURUS Hammer or Trigger Shim Pak Assortments BELOW are as follows;
2 Pak comes in .002"
4 Pak comes with 2 each .002" and .003"
6 Pak comes with 2 each .002", .003" and .004"
8 Pak comes with 2 each .002", .003", .004" and .005"
12 Pak comes with 4 each .002", .003", .004"
20 Pak comes with 4 each .002", .003". .004", .005" and .006"
24 Pak comes with 6 each .002", .003", .004" and .005"
30 Pak Gunsmith Special Assortment comes with 6 each .002", .003", .004", .005" and .006"
50 Pak Gunsmith Special Assortment comes with 10 each .002", .003", .004", .005" and .006"
Choose ANY Hammer or Trigger Pak and Specify Your Requested Thickness in Comment Box
Available in Stainless Steel ~ .002" - .010" Thickness
👉For Best Assortment to Fit Most Guns
Order 6 or 8 Pak of Each Hammer and Trigger Shims
All Shims Include Free Economy Shipping - First Class Mail
I do not have a all-inclusive cross reference of TAURUS models
If you find a shim that matches your revolver not listed, shoot me a measurement and a picture and I will include the reference
Taurus 85 Revolver
Small Frame
Trigger and Hammer Shims
Taurus 85 Hammer / Trigger Shims
~ Sideplate Shims ~
Fits: SMALL FRAME
Small Frame Shims for the Hammer and Trigger Pin
Our Taurus 85 & Small Frame Hammer and Trigger Shims
will fit most if not all Small Frame Taurus Revolvers
Most Taurus 85 from the 80's up
*Some 605 - *Check size first
NOTE: Late Model 605 Use 856 below
Order Separately Below
Trigger Shim .095" X .174"
Hammer Shim .126" X .251"
*Note: some guns have pins with a large radius at the base,
and the shim will not seat - see TECH TIP note below.
Taurus Small Frame Revolver Hammer ~ and ~ Trigger Shims
-ORDERING INSTRUCTIONS-
Assortment Listed at Top of This Section
Free Economy Shipping - First Class Mail
Stock # Taurus SM-TRIGGER ~ Trigger Shim .095" X .174"
Stock # Taurus SM-HAMMER ~ Hammer Shim .126" X .251"

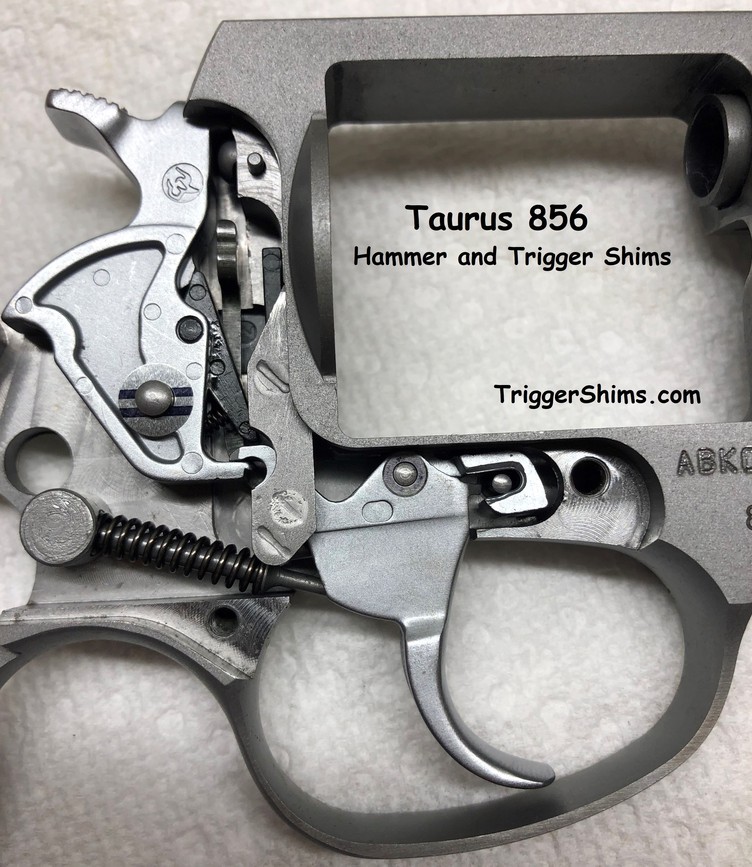

Taurus 856 Steel and Alloy Revolver
Medium Frame
Trigger and Hammer Shims
Taurus 856 Hammer / Trigger Shims
~ Sideplate Shims ~
Fits: MEDIUM FRAME
Taurus 856 / Late 605 Hammer and Trigger Shims
Our Hammer and Trigger Shims will fit many
Small/Med Frame Revolvers
Fits Models with:
.091"+- Trigger Pin and .135"+- Hammer Pin
*Note: The shim difference from Small to Medium Frame Revolvers is the Hammer Shim Diameter
Order Separately Below
Trigger Shim .095" X .174"
Hammer Shim .140" X .281"
Taurus 856 Revolver Hammer ~ and ~ Trigger Shims
-ORDERING INSTRUCTIONS-
Assortment Listed at Top of This Section
Free Economy Shipping - First Class Mail
Stock # Taurus 856-TRIGGER ~ Trigger Shim .095" X .174"
Stock # Taurus 856-HAMMER ~ Hammer Shim .140" X .281"

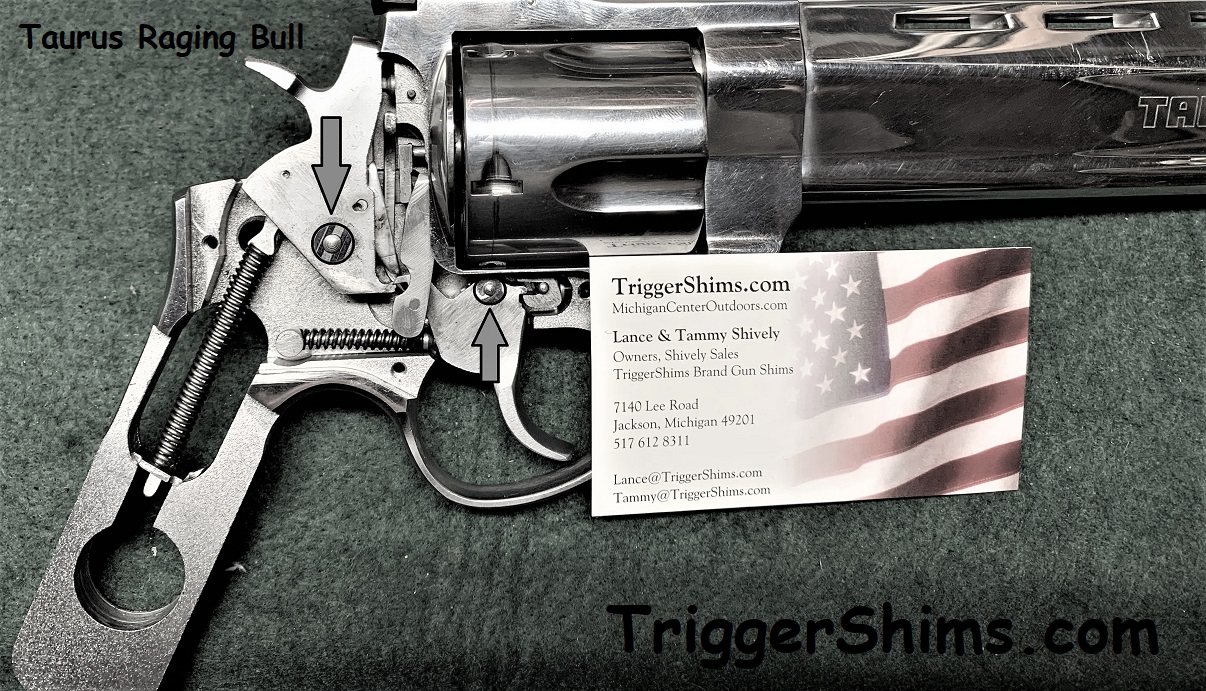

Taurus Raging Bull
Large Frame
Trigger and Hammer Shims
Fits: Large Frame Taurus® Revolver
Taurus Raging Bull
Taurus 44 Magnum
Tracker 44
Taurus 66 7 Shot
Taurus 627
Hammer/Trigger Shims
~ Sideplate Shims ~
Large Frame Shims for the Hammer and Trigger
Taurus Raging Bull Hammer and Trigger Shims
Our Hammer and Trigger Shims will fit Most ~ Large Frame Revolvers and some Medium / Large Frame Revolvers
*Note: The shim difference from Medium to Large Frame Revolvers is the Trigger Shim Diameter
Order Separately Below
Trigger Shim .100" X .221"
Hammer Shim .140" X .281"
Taurus Raging Bull Large Frame Trigger and Hammer Shims
-ORDERING INSTRUCTIONS-
Assortment Listed at Top of This Section
Free Economy Shipping - First Class Mail
Stock # Taurus RB/LG-TRIGGER ~ Trigger Shim .100" X .221"
Stock # Taurus RB/LG-HAMMER ~ Hammer Shim .140" X .281"
TECH TIP: Taurus Hammer / Trigger Shims
Taurus Hammer and Trigger Shim Installation Instructions
To install shims in your Taurus, you should disassemble and remove the Hammer and Trigger springs, begin by installing a shim on both* sides of the Trigger and Hammer, re-install the frame side plate (without springs) and check for binding.
If the Trigger and Hammer move freely, continue to add shims
At the point you begin to trap or bind the hammer and trigger, you will have your approximate free clearance, and you can then remove shims and install the proper amount, leaving a final clearance of around .003" to .004" - and reassemble the unit complete.
I suggest a 12 Piece Kit to provide ample Shims for this procedure

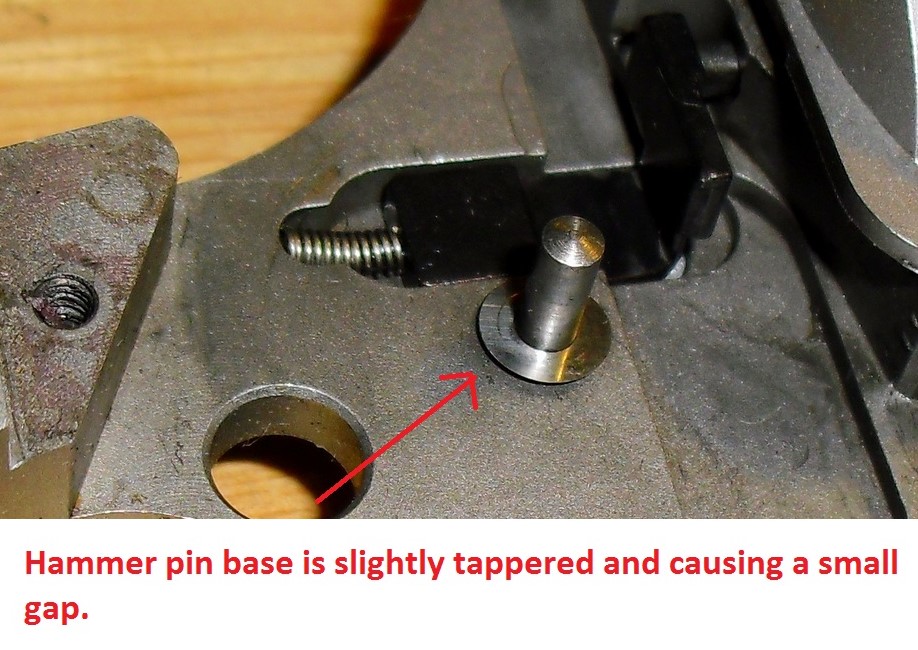

*Note: some small frame guns have pins with a large radius at the base, and the shim will not seat.
The Hammer and Trigger Pin Holes are also Radiused, and should seat together.
If that is the case, you can successfully shim the Right Side only, or if needed, contact me to order Larger I.D. Shims
TECH TIP: Taurus Small / Medium / Large Frame
Taurus Small Frame - Model 85
Taurus Medium Frame - 441/443 and 856
Taurus Large Frame - Generally Use Raging Bull Shims
Small Frame: Trigger Shim .095" X .174" ~ Hammer Shim .126" X .251"
Medium Frame: Trigger Shim .095" X .174" ~ Hammer Shim .140" X .281"
Large Frame: Trigger Shim .100" X .221" ~ Hammer Shim .140" X .281"
If you have Questions ~ Measure First
NOTE: I am constantly trying to update my reference chart for Taurus Models, if you have a model not listed, and can send a photo of the Trigger / Hammer Pin Measurements, I would appreciate it
Taurus Revolver Cylinder / Yoke Shims
Our Standard Cylinder / Crane / Yoke Shim Pak
Assortments BELOW are as follows;
2 Pak comes in .002"
4 Pak comes with 2 each .002" and .003"
6 Pak comes with 2 each .002", .003" and .004"
8 Pak comes with 2 each .002", .003", .004" and .005"
12 Pak comes with 4 each .002", .003", .004"
20 Pak comes with 4 each .002", .003". .004", .005" and .006"
24 Pak comes with 6 each .002", .003", .004" and .005"
30 Pak Gunsmith Special Assortment comes with 6 each .002", .003", .004", .005" and .006"
-OR- Choose ANY Pak and Specify Your Requested Thickness in Comment Box
NOTE: I do not have an extensive Cross Reference of Taurus models and sizes of shims.
If you do not see your specific model listed, you will need to take your own measurements and compair to the sizes and notes listed below. If you have any questions please send me your crane and cylinder and/or bushing measurements and I will try to help you ~ Lance@TriggerShims.com
Taurus 65 Cylinder / Endshake Shims
Our Shims will fit Many Older Taurus Revolvers
Also fits Rossi Models 38 and 68
If you have questions on fit, measure first
Nominal O.D. of .345" X I.D. of .242"
Including Many Models 65, 66 7 Shot Model, 82, 85/605 etc.
Note: Taurus 66 6 Shot Model - USE Colt SAA Cylinder Shim
Note: Taurus 85 / Judge / Raging Bull - USE Dan Wesson Large Cylinder Shim
install under Cylinder Bushing - see below
Stock # Taurus-65/CS ~ Price includes Free Shipping

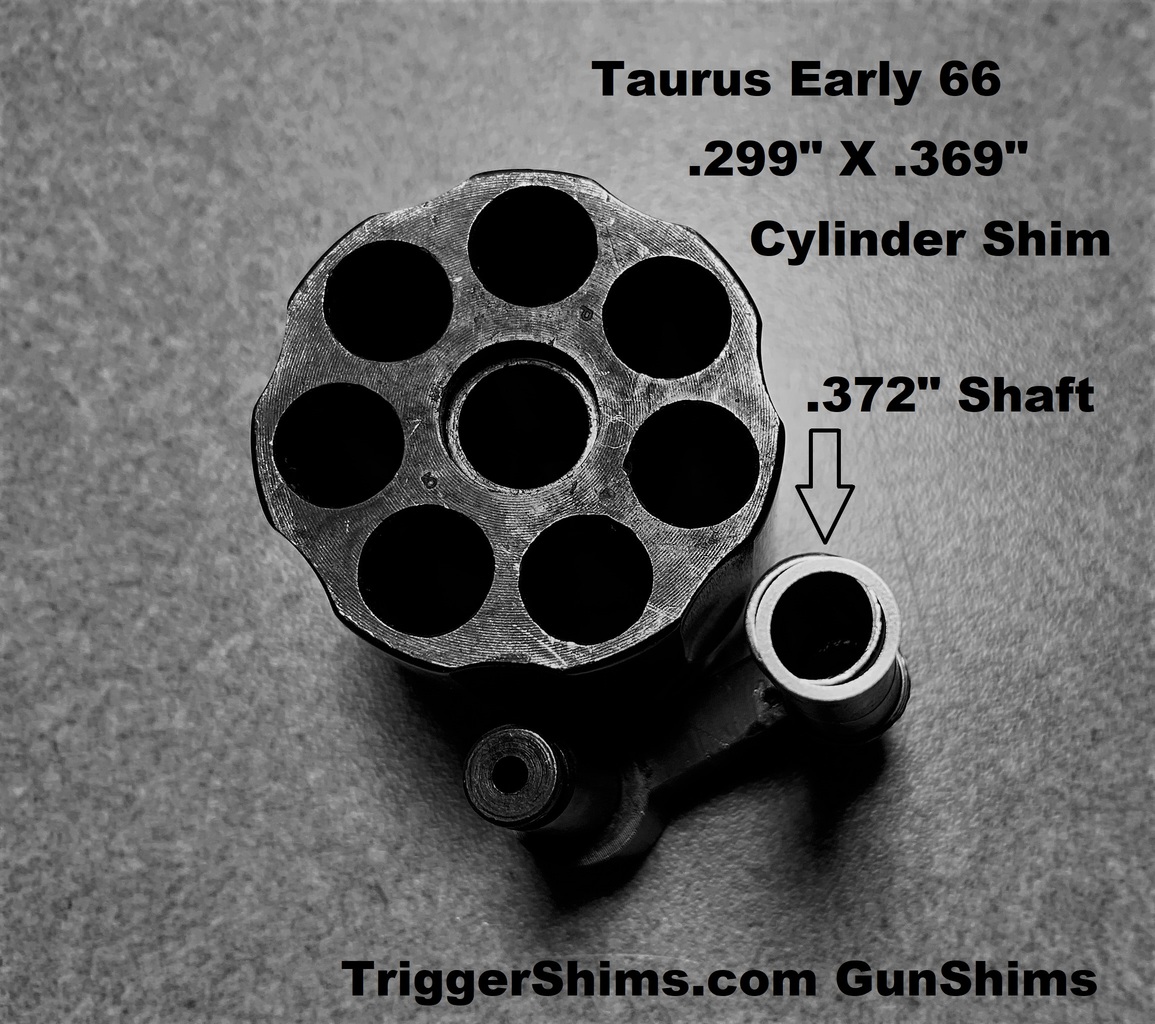

Taurus Early 66 Cylinder / Endshake Shims
These Shims fit Old Taurus 66 Revolvers
If you have questions on fit, measure first
Nominal O.D. of .369" X I.D. of .299"
Model ~ Taurus Early 66 and 606
Note: Some Taurus 66 6 Shot Model use - Colt SAA Cylinder Shim
Stock # Taurus-E66/CS ~ Price includes Free Shipping
Taurus 83 Pre-Lock Cylinder
Taurus 83 and Similar without Cylinder Bushing
.299" X .345" Charter Arms Cylinder Shims
Follow Instructions in Photo
Check your Yoke Cylinder Shaft Dimensions!
If you have questions on fit, measure first
Taurus 96 .22 Rimfire Revolver
Taurus 96 .22 Rimfire Revolver
.357" X .401"
Misc Stock Box
If you have a Taurus 96 and need shims email me, I need photo's and measurements of this gun
If you have questions on fit, measure first
Taurus 85 ~ 905 and Judge Cylinder
see Photo - Right
If you have a loose bushing you can install the shim under the bushing as shown in photo at right.
Use Dan Wesson Large Frame ~ T85 Cylinder Shims - .376" X .442"
If you have questions on fit, measure first.
Taurus 85 / 905 / Judge and Dan Wesson Large Frame Revolvers
Matches Factory DW Size
Cross Reference:
Fits Taurus 44 and 454 - Model 85 / 905 and "The Judge" "Raging Bull"
Between #69 Bushing and Yoke
Cylinder / Yoke Shim Assortment Chart
Price includes Free Economy Shipping
Taurus Revolver Gun Springs
Taurus Small Frame

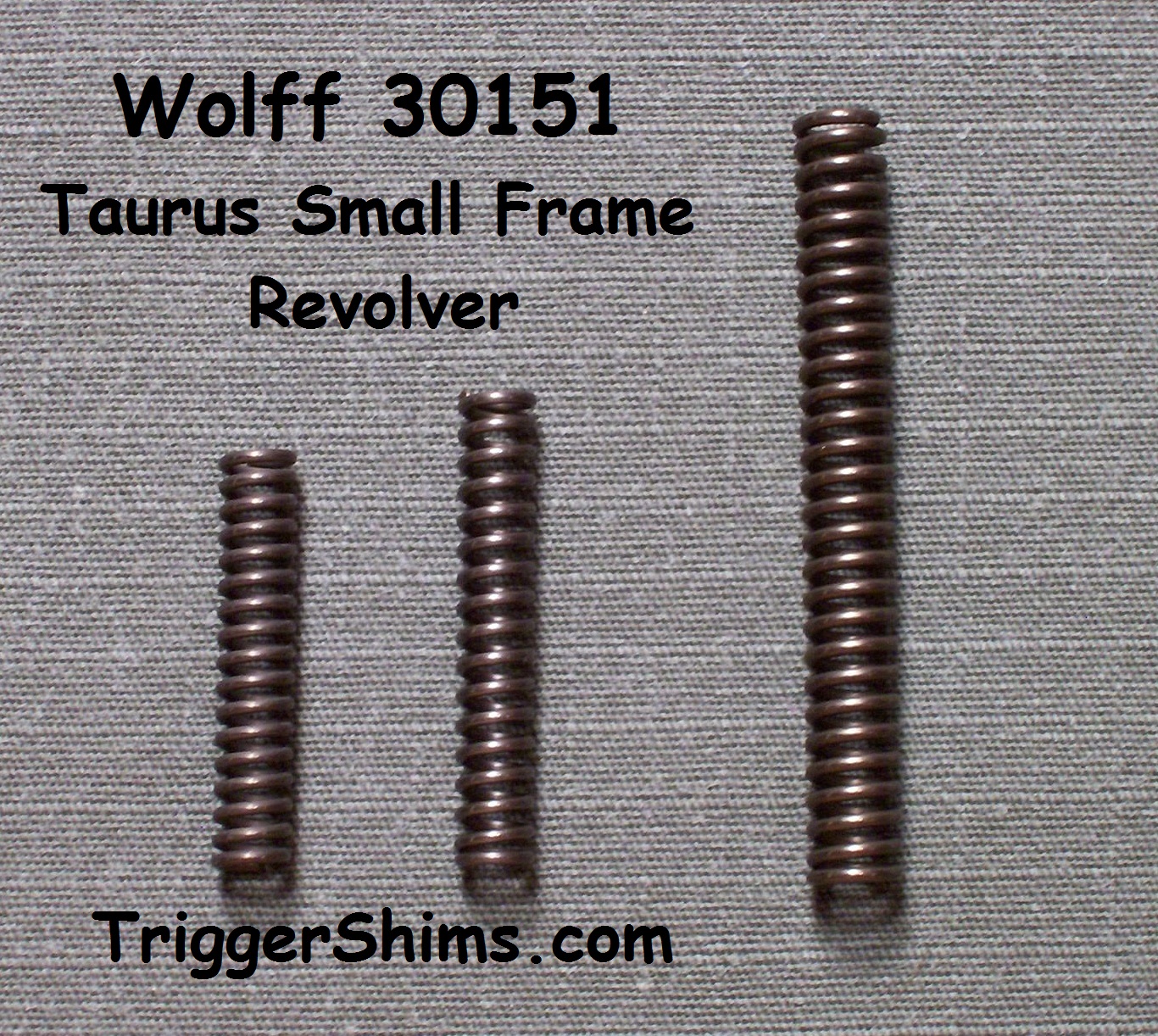

Taurus 73, 85 and 605 Small Frame Revolver Reduced Power Shooter's Pak
Wolff # 30351 ~ Not Recommended for Models 94, 941
Please Note: Due to changes in newer revolvers, Wolff Trigger Springs may require some modification.
Service Pak for Taurus Small Frame Revolvers contains the following springs:
1 Each 9 Pound Reduced Power Hammer Spring and 1 Each 6.5 and 9 Pound Reduced Power Trigger Return Springs Allowing Adjustment for Lighter and Smoother Trigger and Hammer Action.
Wolff 30151 ~ $15.95 Free USA Shipping/Tracking ~ No Exports on this item!
Taurus Large Frame
Taurus Models 44, 45, 65, 66, 80, 82, 83, 431, 441, 445, 606, 607, 608, 617, 631, 669 and 689 Large Frame Revolver Shooter's Pak
Service Pak for Taurus Large Frame Revolvers contains the following springs:
1 Each 10, 11 and 12 Pound Reduced Power Hammer Springs and 1 Each 10 and 11 Pound Reduced Power Trigger Return Springs Allowing Adjustment for Lighter and Smoother Trigger and Hammer Action.
Note: Factory Standard.: 14 Lb. (Reference Only)
Wolff 17190 ~ $16.95 Free USA Shipping/Tracking ~ No Exports on this item!
TECH TIP: Taurus Frame Sizes
Taurus Frame Sizes
Small (Models 85, 94, 605, etc)
Compact (Tracker, 445, 450, etc)
Medium/Large (44, 65, 80, 82, 83, 96, 431, 441, 607, 608, 669)

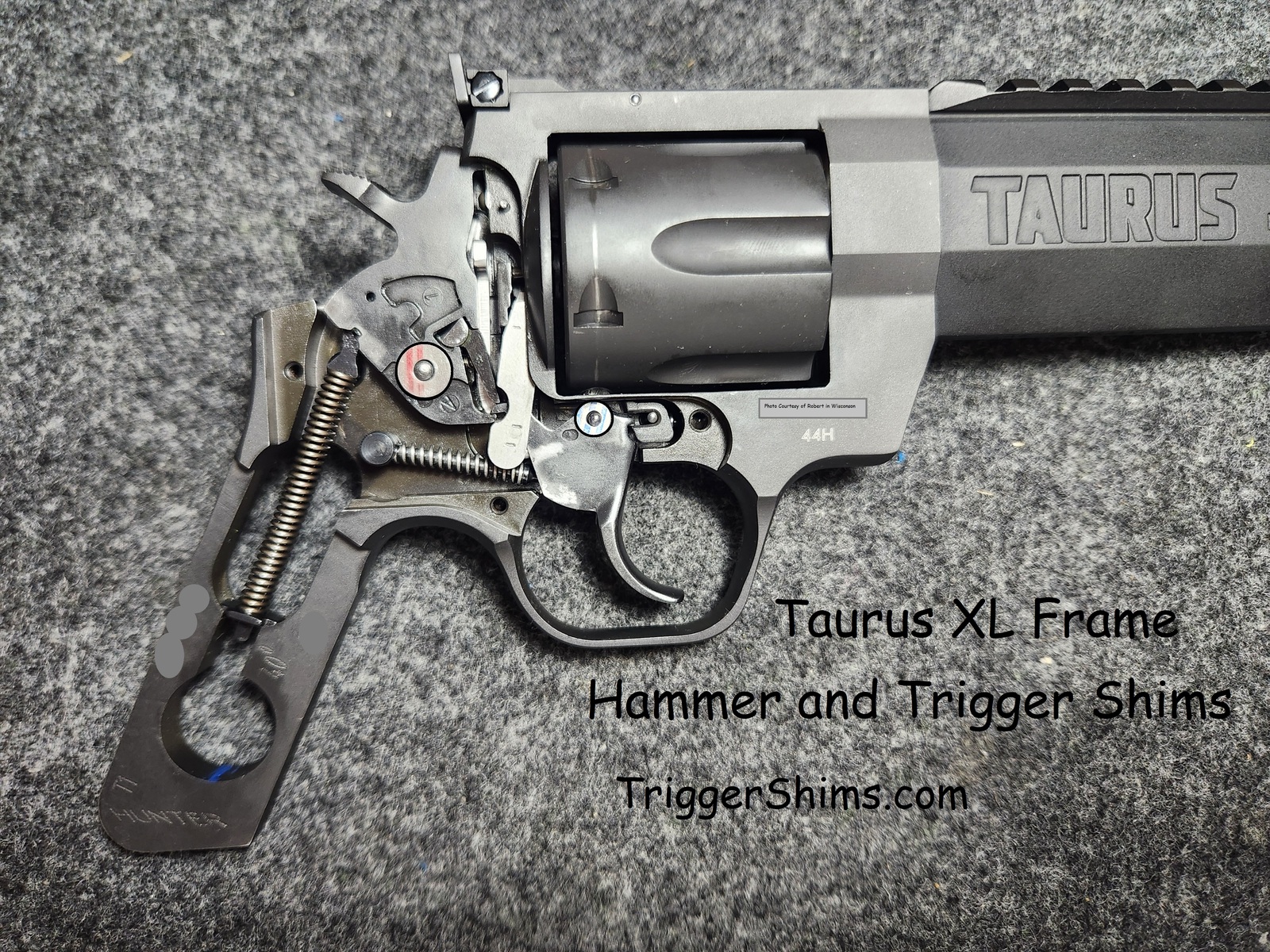

EX Large (Raging)
