Smith & Wesson K L N and X Frame
Shims and Springs
Smith and Wesson®
K ~ L ~ N ~ X Frame
~ Index for Items on this Page ~
S&W Revolver Hammer/Trigger ShimsS&W Revolver Cylinder Shims
S&W Revolver Yoke Shims
S&W Revolver Wolff Spring Kits
TECH TIP: Larry Potterfield ~ How to Install S&W Cylinder Shims
TECH TIP: Joe Berk Blog on Misfires and Cylinder Shims
Shipping/Mail Upgrades/Tracking Information
👉Link To: ADD USPS TRACKING UPGRADE with SHIPPING PROTECTION
S&W K ~ L ~ N Frame Revolver
Hammer and Trigger Shim Paks
Smith & Wesson K, L, N Frame Hammer/Trigger Shim Kits
Sideplate Shims
Stainless Steel K, L, N Frame Shims for the Hammer and Trigger Pin
My Custom Made Shim Washers for the Smith and Wesson K, L, and N Frame and X Frame revolver will allow you to center the Hammer and Trigger, eliminating drag caused by these parts rubbing the frame.
Our Shim washers are made of 300 Series Stainless Steel, custom manufactured specifically to fit the K, L and N Frame.
Note- X Frame and L Frame Model 69 .44 Combat Magnum takes a Larger Trigger Shim
Order Box for X Frame is listed below K, L, and N shims.
K-Frame models: 10, 12, 13, 14, 15, 16, 17, 18, 19, 65, 66, 67, 617, 648
L-Frame models: 581, 586, 681, 686, 696
N-Frame models: 24, 25, 27, 28, 29, 57, 610, 624, 625, 627, 629, 657
X-Frame and K and L Frame Model 66 and 69 Combat Magnum is Listed Seperately Below 👇
Smith and Wesson Models
K, L, and N Frame Revolver
Hammer ~ and ~ Trigger
Shim Paks
Our Hammer AND Trigger Shim Pak Assortments BELOW are as follows;
4 Pak comes with 2 H&T each .002"
8 Pak comes with 2 H&T each .002", .003"
12 Pak comes with 2 H&T each .002", .003", .004"
16 Pak comes with 2 H&T each .002", .003", .004", .005"
20 Pak comes with 2 H&T each .002", .003". .004", .005" and .006"
24 Pak comes with 4 H&T each .002", .003", .004"
32 Pak Gunsmith Special Assortment comes with 4 H&T each .002", .003", .004", .005"
2 Pak comes in .002" ~ You Choose ~ Hammer or Trigger
50 Pak ~ You Choose ~ H&T or Hammer or Trigger Any Assortment
-ORDERING INSTRUCTIONS-
All Shims Available in .0015" - .007" By Request
S&W KLN Trigger Shim ~ .108" x .242"
S&W KLNX Hammer Shim ~ .146" x .368"
Stock # SWKLN-H/T - Price Includes Free Economy Shipping
Smith and Wesson X Frame
Hammer / Trigger Kit
Also Fits
K and L Frame Model 66 and 69 Combat Magnum
NOT for standard K, L, N Frames
Smith and Wesson X Frame .500 Magnum
Smith and Wesson X Frame .460 Magnum
K & L Frame Model 66/69 Combat Magnum
S&W X takes a Larger I.D. Trigger Shim (.126" X .242")
S&W X Frame Revolvers have a Larger Trigger and Pin,
and require the Larger OD Trigger Shim we make
H&T Assortment Paks are the same as K, L, and N Frame above
S&W X Trigger Shim ~ .126" x .242"
S&W X Hammer Shim ~ .146" x .368"
Stock # SWX-H/T ~ Price includes Free Economy Shipping!
TECH TIP: SHIM INSTALLATION
S&W Hammer and Trigger Shim Installation Instructions
To install shims in your S&W Revolver, you should disassemble and remove the Hammer and Trigger springs,
begin by installing a shim on each side of the Trigger and Hammer, re-install the frame side plate (without springs) and check for binding. If the Trigger and Hammer move freely, continue to add shims.
At the point you begin to trap or bind the hammer and trigger, you will have your approximate free clearance, and you can then remove shims and install the proper amount, leaving a final clearance of around .003" to .004" - and reassemble the unit complete.
I suggest a 12 Piece Kit to provide ample Shims for this procedure.
BOX SWKLN-CS
Smith & Wesson K, L, N, X Frame Revolver Cylinder Shim / End Shake Bearing Paks
Stainless Steel K, L, N, X Frame Cylinder Shims - Endshake Bearings to reduce Cylinder End Play
Cylinder Shims can be stacked to obtain proper clearance.
Nominal O.D. of .376" X I.D. of .265"
Also Fits X Frame ~ S&W 500
Cross Reference / Fits:
Smith and Wesson M1917 Revolver ~ "2nd Hand Ejector Frame"
Also Fits S&W 1905 Hand Ejector Models
Our Standard Shim Pak Assortments are as follows;
2 Pak comes in .002"
4 Pak comes with 2 each .002" and .003"
6 Pak comes with 2 each .002", .003" and .004"
8 Pak comes with 2 each .002", .003", .004" and .005"
12 Pak comes with 4 each .002", .003", .004"
20 Pak comes with 4 each .002", .003". .004", .005" and .006"
24 Pak comes with 6 each .002", .003", .004" and .005"
30 Pak Gunsmith Special Assortment comes with 6 each .002", .003", .004", .005" and .006"
50 Pak Your Assortment
-OR- Choose ANY Pak and Specify Your Requested Thickness in Comment Box
~ NEW ~ This Shim Also Available in .0015" and .010" - (One and One Half and Ten Thousandths) by request
Price includes Free Economy Shipping
Stock # SWKLN-CS
Great product, with excellent assortment and fair price. I bought the 20 pack of S&W end-shake shims. Worked perfectly in two of my older S&W Magnum revolvers. Thanks again, Ken in WV
Smith & Wesson K, L, N Frame Revolver Yoke Bearing Paks
Stainless Steel K, L, N Frame Yoke Shims - Yoke Bearings to Adjust Cylinder End Play
Yoke Shims can be stacked to obtain proper clearance.
These Shims are installed between the Yoke and Frame.
Yoke Bearings are necessary when setting up the Yoke and Cylinder for Minimum Endshake, especially on S&W Models (1988 Series & Later) that have the Spring Loaded Plunger in the Front Side Plate Screw.
Installation Instructions are not included.
Nominal O.D. of .498" X I.D. of .314"
Our Standard Shim Pak Assortments are as follows;
2 Pak comes in .002"
4 Pak comes with 2 each .002" and .003"
6 Pak comes with 2 each .002", .003" and .004"
8 Pak comes with 2 each .002", .003", .004" and .005"
12 Pak comes with 4 each .002", .003", .004"
20 Pak comes with 4 each .002", .003". .004", .005" and .006"
24 Pak comes with 6 each .002", .003", .004" and .005"
30 Pak Gunsmith Special Assortment comes with 6 each .002", .003", .004", .005" and .006"
50 Pak Your Assortment
-OR- Choose ANY Pak and Specify Your Requested Thickness in Comment Box
Price includes Free Economy Shipping
Stock # SWKLN-YOKE
Cylinder Stop Shims
Smith and Wesson K, L, N
Cylinder Stop Shims

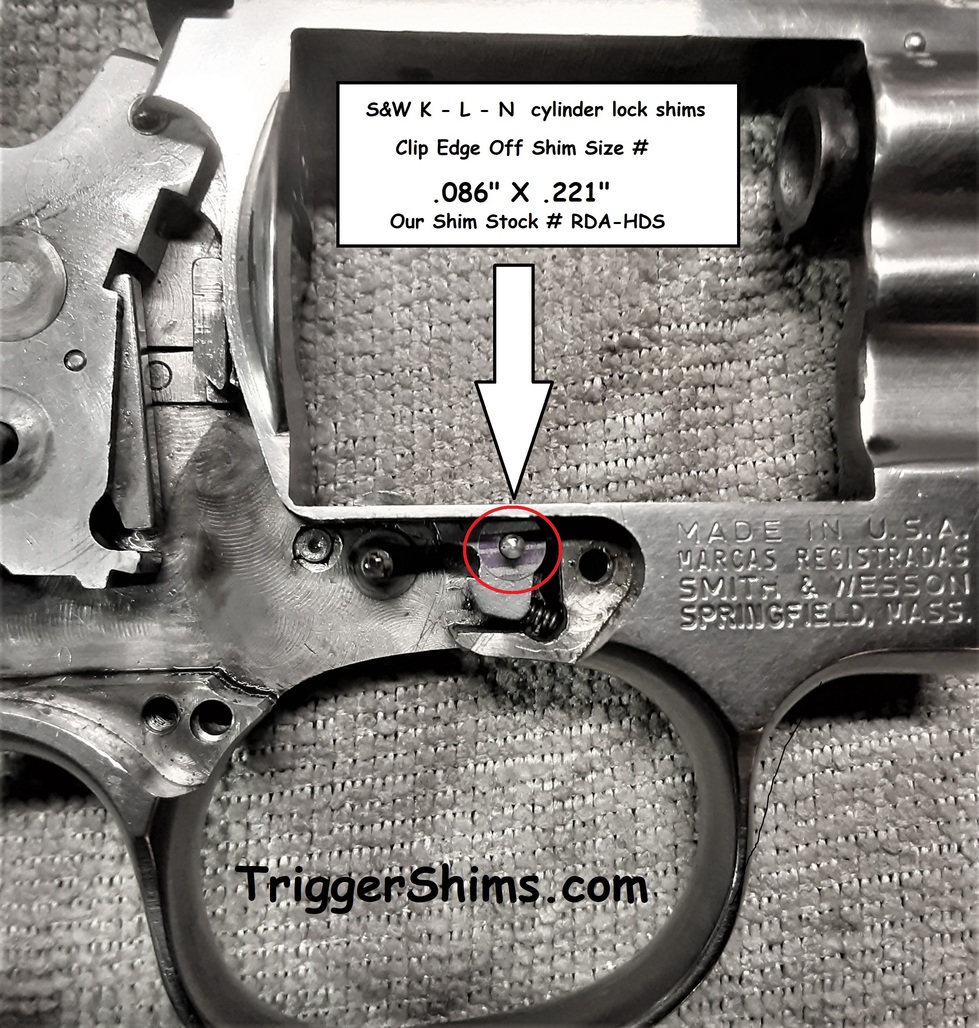

This shim is a perfect fit for the Cylinder Stop Pin, but you will have to clip off a small edge where it sets against the frame - Use Our RDA-HDS shim - Click the Link Below
S&W K ~ L ~ N Cylinder Stop Shims - USE Item # RDA-HDS
Our Shims will fit 5/64" Cylinder Stop Pin, you will need to trim a flat on the top edge
BOX SW87SH
Smith & Wesson Safety Hammerless
Smith & Wesson Double Action 4th Model
Revolver Cylinder Shim / EndShake Shim Paks
.299" X .362" ~ In Stock 6/2022
Fits Revolvers with a .295" plus/minus Cylinder Shaft
and a .361 plus/minus Cylinder Gas Ring
302 Stainless Steel
Safety Hammerless Cylinder Shims / Endshake Bearings to Reduce Cylinder End Play
Cylinder Shims can be stacked to obtain proper clearance.
Nominal O.D. of .362" X I.D. of .299"
Our Standard Shim Pak Assortments are as follows;
2 Pak comes in .002"
4 Pak comes with 2 each .002" and .003"
6 Pak comes with 2 each .002", .003" and .004"
8 Pak comes with 2 each .002", .003", .004" and .005"
12 Pak comes with 4 each .002", .003", .004"
20 Pak comes with 4 each .002", .003". .004", .005" and .006"
24 Pak comes with 6 each .002", .003", .004" and .005"
30 Pak Gunsmith Special Assortment comes with 6 each .002", .003", .004", .005" and .006"
50 Pak Your Assortment
-OR- Choose ANY Pak and Specify Your Requested Thickness in Comment Box
Price includes Free Economy Shipping
Stock # SW87SH-CS
S&W-Endshake
Links to Videos on Endshake
Gun News and Reviews Cylinder Shim Installation Instructions here ~ S&W Cylinder Shim Installation
Please Remember to use Dummy or Spent Cartridges to Support the Ejector Star Ratchet when loosening or tightening the Ejector Screw
If you enjoy these videos, leave the YouTuber a nice comment, and say you found his videos at TriggerShims.com If you don't like his videos, remember what your Mother should have taught you... "If you don't have something nice to say son, don't say anything at all"
Our USA Made Shim Stock holds a tolerance of less than 10% while most all calipers hold a measurement tolerance of Plus or Minus .001" and many round to the nearest .0005"
Burrs from the stamping process can influance the measurements slightly, it is best to refer to the color coding when deciding what shim to use.
BOXJBT#misfire
BLOG TIP: Smith and Wesson Misfires

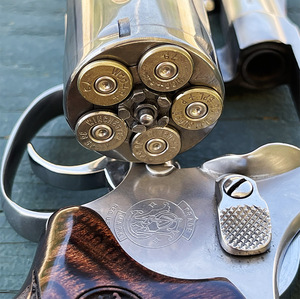

Click on Link Photo Link Right for ExhaustNotes Blog on S&W Misfires and Fixes
If you have Excessive Cylinder Endshake in your Revolver it may contribute to Light Strikes and Misfires ~ Joe Berks ExhaustNotes Blog shows you what to do ~ Click to Open in New TabClick Here for Joe's Blogsite Tales of the Gun and Please leave a comment on Joe's Blog
Don't Forget to tell him Lance at TriggerShims.com Sent You!
Spring Removal Tool Information at the Bottom of this Page
Wolff Reduced Power Spring Kit # 17121
Smith & Wesson Models K, L and N Shooter's Pak
The Power Rib Mainspring developed by W.C. Wolff Company is a patented mainspring for use in Smith & Wesson K, L and N frame revolvers. This spring has a unique variable power rib-back design. The Wolff Power Rib Mainspring dramatically improves the smoothness and consistency of trigger pull essentially eliminating stack up as well as providing optimum hammer action. This spring can usually take the place of expensive trigger jobs, with better results. NOTE: For most target and non-critical applications, Wolff recommends the TYPE-2 spring which is reduced power.
This kit is the TYPE 2
For critical applications such as law enforcement, Wolff strongly recommends the TYPE-1 spring which is factory equivalent in strength.
Power Rib Shooter's Paks -
Shooter's paks for Smith & Wesson K, L and N frame revolvers contain a Power Rib mainspring and 1 each of 13, 14 and 15 pound reduced power rebound springs allowing optimum adjustment of the hammer and trigger functions.
As mentioned above, these paks can often take the place of expensive "trigger jobs" with better results
I also include a 17185 Xtra Power Cylinder Stop Spring in this kit,
for a total of 5 springs in this kit.
K-Frame models: 10, 12, 13, 14, 15, 16, 17, 18, 19, 65, 66, 67, 617, 648
L-Frame models: 581, 586, 681, 686, 696
N-Frame models: 24, 25, 27, 28, 29, 57, 610, 624, 625, 627, 629, 657
Wolff 17121-Type 2 Reduced Power $24.95 Free Shipping ~ USA Only!
Need help with Light Strikes? Check out this video by TheGoatMumbler
Wolff Factory Equivalent Power Spring Kit
# 17120
Smith & Wesson Models K, L and N Shooter's Pak
This kit is the TYPE 1 Factory Equivalent Power Rib Mainspring
For critical applications such as law enforcement, Wolff strongly recommends the TYPE-1 spring which is factory equivalent in strength.
Power Rib Shooter's Paks -
Shooter's paks for Smith & Wesson K, L and N frame revolvers contain a Factory Equivalent Power Rib Mainspring and 1 each of 13, 14 and 15 pound reduced power rebound springs allowing optimum adjustment of the hammer and trigger functions. As mentioned above, these paks can often take the place of expensive "trigger jobs" with better results
I also include a 17185 Xtra Power Cylinder Stop Spring in this kit,
for a total of 5 springs in this kit.
K-Frame models: 10, 12, 13, 14, 15, 16, 17, 18, 19, 65, 66, 67, 617, 648
L-Frame models: 581, 586, 681, 686, 696
N-Frame models: 24, 25, 27, 28, 29, 57, 610, 624, 625, 627, 629, 657
Wolff 17120 Factory Equivalent Type 1 $24.95 Free Shipping ~ USA Only!
Smith and Wesson K, L, N
17185 Xtra Power Cylinder Stop Spring
This spring is included in our 17121 and 17120 Spring Pak.
Stock No 17185......$7.95
Wolff 17185 $7.95 Free Shipping
Spring Kits and Tools Ship USA Only / No Exports
TECH TIP: S&W Trigger Spring Tool
Gunsmither Tools make a unique line of American Made Gun Smith Tools with Instructional Video's
Buy it from us with your spring order ~or~
Stop by Joe's web site (link below) and tell him Lance sent you, You will be glad you did!
Lance,
I received my order today and had to give the S&W rebound slide/spring tool a try.
Wow is that easy. I was skeptical that it would be that easy. But after watching the video on your webpage I thought it was worth a try. Sure enough, no more wrestling on the bench with that little devil.
Thank You, Ray in WI
TECH TIP VIDEO: S&W Trigger Spring Tool
UPGRADE FROM FREE ECONONY SHIPPING ~to~ SHIM TRACKING w/ SHIPPING PROTECTION #ESU
~ SHIMS ONLY ~
~ $5.00 U.S. Tracking UPGRADE ~
NOW Includes
~ SHIPPING PROTECTION* ~
~ USA ONLY ~
Upgrade from FREE ECONOMY MAIL to
Bubble Pak w/ Tracking
(Shims Only) Orders - Add TRACKING $5.00 - USA ONLY
Shim orders DO NOT include Tracking!
THIS IS FOR SHIMS - ALL OTHER ORDERS Include this Upgrade
~Click the ADD TO CART button below ANYTIME BEFORE WE SHIP SHIMS~
USA ONLY
* USPS Ground Advantage™ Service
* Replacement for items lost or damaged during shipping
We Cheerfully accept Cash, Money Order, and Credit Cards through our Secure PayPal Check-Out
All Website Orders are Shipped the Next Business Day
I will Ship Shims to USA, Canada and International
Gun Parts Shipped to USA Only
"American Made Gun Shims" - GunShims.com - TriggerShims.com
and
TriggerShims is a Trademark
of
Shively Sales
Michigan Center, Michigan
Copyright 2008 ~ 2022
BY PURCHASING SHIVELY SALES PRODUCTS
YOU ASSUME ALL RESPONSIBILITY FOR THEIR SAFE INSTALLATION AND USAGE.
YOU RETAIN ANY AND ALL RESPONSIBILITY FOR YOUR OWN ACTIONS. Be Safe!!
If you have any questions or safety concerns, see a qualified Gunsmith.
I manage this site myself, Please Report Any Website Problems to;
Lance at Webmaster@TriggerShims.com
Republic.... I like the sound of the word. It means people can live free, talk free, go or come, buy or sell, be drunk or sober, however they choose. Some words give you a feeling. Republic is one of those words that makes me tight in the throat - the same tightness a man gets when his baby takes his first step or his first baby shaves and makes his first sound as a man. Some words can give you a feeling that makes your heart warm. Republic is one of those words. - John Wayne in the Alamo
