TECH TIP: S&W J FRAME MODELS

J-Frame (small frame) Models

Smith & Wesson Model 36—known as the "Chiefs Special"; first J-frame (1950), 5-shot revolver
Smith & Wesson Model 37—known as the "Chiefs Special Airweight";
Smith & Wesson Model 60—first regular production all stainless steel revolver (1965); the stainless Chief's Special
Smith & Wesson Model 340PD—first revolver made of scandium alloy, very light, possibly the final evolution of the classic J-frame Chief's Special introduced over 60 years earlier, weighs 12 ounces
Smith & Wesson Lemon Squeezer—The "lemon squeezer," also known as Model 40, Model 42 and 38 Safety
Smith & Wesson Centennial—standard and "Airweight" (Models 40, 42, 442, 640, 642) (at one time available in 9x19mm caliber as the Model 940)
Smith & Wesson Chief's Special—standard and "Airweight" (Models 36, 37, 60, 637)
Smith & Wesson Bodyguard—standard and "Airweight" (Models 38, 380, 49, 438, 638, 649)
Smith & Wesson Ladysmith

And Other Similar Models

Your Payment is Secure with
our PayPal/Visa-MC Checkout.

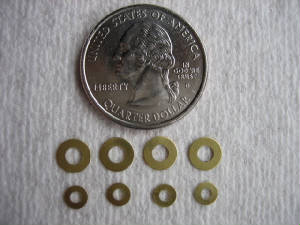

Smith & Wesson J Frame Revolver Shims

Smith & Wesson J Frame Revolver

Shims shown installed on Hammer and Trigger. Click Picture to Enlarge

My Custom Made Shim Washers for the Smith and Wesson J-Frame Revolver will allow you to center the Hammer and Trigger, eliminating drag caused by these parts rubbing the frame.

My Shim washers are custom manufactured specifically to fit the Smith and Wesson J-Frame Revolver, and are made with USA 300 Series Stainless Steel.

Smith and Wesson J Frame

Shim Kits


Smith & Wesson J Frame
Hammer / Trigger Shim Kit

SW J Frame Hammer/Trigger Shim Kit

Our Hammer AND Trigger Shim Pak Assortments BELOW are as follows;

 2 Pak comes in .002" ~ You Choose ~ Hammer or Trigger
 4 Pak comes with 2 H&T each .002"
 8 Pak comes with 2 H&T each .002", .003"
12 Pak comes with 2 H&T each .002", .003", .004"
16 Pak comes with 2 H&T each .002", .003", .004", .005"
20 Pak comes with 2 H&T each .002", .003". .004", .005" and .006"
24 Pak comes with 4 H&T each .002", .003", .004"
32 Pak Gunsmith Special Assortment comes with 4 H&T each .002", .003", .004", .005"

-ORDERING INSTRUCTIONS-

  • Box 1 ~ Choose ANY Pak Quantity for Best Pricing
  • Box 2 ~Choose From Hammer AND Trigger, or Hammer Only or Trigger Only
  • Box 3 ~ for Special Request of Thickness or Assortment
  • Stock # SWJ-SS

    S&W J Frame H/T Kit
    Regular or Hammer or Trigger Assortment
    Enter Choice / Request Below

    TECH TIP: SHIM INSTALLATION

    S&W Hammer and Trigger Shim Installation Instructions

    To install shims in your S&W Revolver, you should disassemble and remove the Hammer and Trigger springs,
    begin by installing a shim on each side of the Trigger and Hammer, re-install the frame side plate (without springs) and check for binding. If the Trigger and Hammer move freely, continue to add shims.
    At the point you begin to trap or bind the hammer and trigger, you will have your approximate free clearance, and you can then remove shims and install the proper amount, leaving a final clearance of around .003" to .004" - and reassemble the unit complete.

    I suggest a 12 Piece Kit to provide ample Shims for this procedure.


    Smith & Wesson J Frame Revolver
    Cylinder Shim / EndShake Bearing Kits

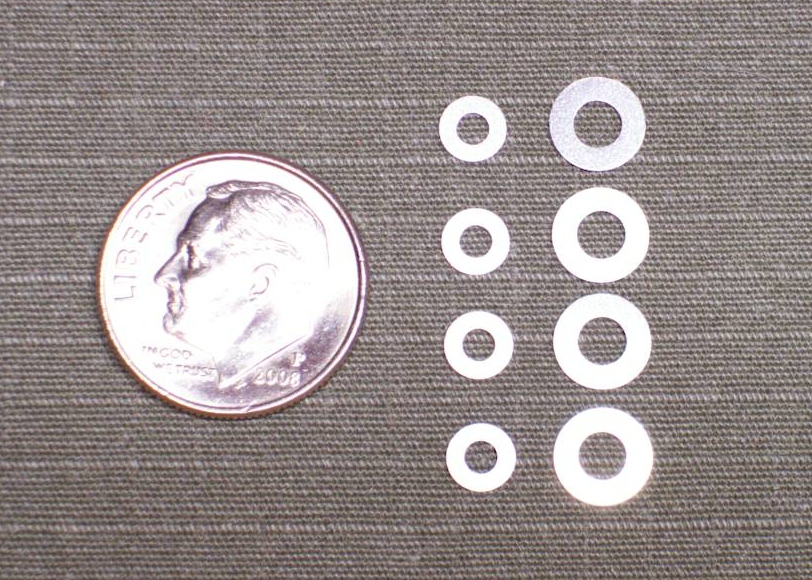

    Stainless Steel Centerfire J Frame Cylinder Shims / Endshake Bearings to Reduce Cylinder End Play

    J Frame Cylinder Shims can be stacked to obtain proper clearance.
    Nominal O.D. of .294" X I.D. of .190"

    Note - .22 Cal 7 and 8 Shot Models use this shim
    Note - .32 Cal Mod 30-1 uses J .22 R.F. shims

    SW J Frame Centerfire Revolvers Cylinder Shims

    Stock # SW-JCF/CS ~ Free Shipping

    S&W J Center Fire Cylinder Shim
    Shim Thickness
    Enter Choice / Request Below

    J Frame .22 Rimfire Cylinder Shim Kit

    Smith and Wesson J Frame Rimfire Cylinder Shims

    Stainless Steel Rimfire J Frame Cylinder Shims
    Endshake Bearings to Reduce Cylinder End Play
    Fits J-Frame .22 Caliber Models
    Cylinder Shims can be stacked to obtain proper clearance.

    Note - 7 and 8 Shot .22 Models use J CenterFire Shim

    Note - This also fits some Older S&W I Frame Models
    and .32 S&W Long J Frame and Mod. 30-1

    Nominal O.D. of .357" X I.D. of .242"

    Rimfire Models Only
    Stock # SW-JRF/CS ~ Free Shipping

    S&W J Rim Fire Cylinder Shim
    Shim Thickness
    Enter Choice / Request Below

    Just to let you know, I installed your .003”cylinder shim in my S&W 43C 22LR snub nose revolver with great results. I was getting almost 10% misfires. After eliminating endshake I had one misfire from 150 rounds of the same batch of ammo. Thanks, Charles

    J Frame Revolver Yoke Bearing Paks

    SW J Frame Yoke Shims

    Stainless Steel J Frame Yoke Shims - Yoke Bearings to Adjust Cylinder End Play
    Yoke Shims can be stacked to obtain proper clearance.

    These Shims are installed between the Yoke and Frame.

    Yoke Bearings are necessary when setting up the Yoke and Cylinder for Minimum Endshake to compensate for wear at the Yoke / Frame
    Fits J Frame Revolvers with .263" Yoke Shaft.
    Installation Instructions are not included.


    Nominal O.D. of .442" X I.D. of .265"

    Stock # SWJ-YOKE ~ Free Shipping

    S&W J Frame Revolver Yoke Shim
    Shim Thickness
    Enter Choice / Request Below

    KLN002

    TECH TIP: CYLINDER SHIMS
    Larry Potterfield ~ How to Install S&W Cylinder Shims

    This Video Applies to All K L N X and J Frame Revolvers

    TriggerShims Logo

    Hello Lance, I just wanted to say I am very pleased with this kit I recently purchased from you. I was able to fix the end-shake issue on my Smith and Wesson model 34-1 (.22 RF J-Frame Kit Gun) I had previously taken this gun to a so-called "gunsmith" who told me my gun was just "worn out" and unrepairable, but by using your end-shake shims it was restored to proper function. Your kit fixed my gun for $10.00, I am an extremely satisfied customer.
    Chris in KY

    BOXJBT#1

    Joe Berk J Cylinder Blog Photo

    BLOG TIP: Smith and Wesson J Frame Cylinder Shims

    Click on Link Photo Link Right for ExhaustNotes Blog on S&W J Frame Cylinder Shim Installation

    If you have Excessive Cylinder Endshake, or Barrel to Cylinder Drag in your S&W Revolver, Joe Berks ExhaustNotes Blog shows you what to do ~ Click to Open in New Tab

    Click Here for Joe's Blogsite Tales of the Gun and Please leave a comment on Joe's Blog
    Don't Forget to tell him Lance at TriggerShims.com Sent You!


    Smith and Wesson J Frame

    Wolff Gun Spring Kits

    Spring Kits Ship USA Only

    Spring Tool Information at the Bottom of this Page.


    Smith & Wesson J-Frame Centerfire Revolver

    Shooters Pak #17125 $14.95

    Wolff 17125

    Includes Models: 31, 32, 34, 36, 360, 37, 38, 42, 442, 49, 60, 63, 631, 632, 637, 638, 640, 642, 649, 940

    Shooters Pak - Reduced Power - This pak contains 1 each 8 pound reduced power hammer spring and 1 each 13, 14 and 15 pound reduced power rebound springs allowing adjustment for lighter and smoother trigger and hammer action.
    Rebound Springs - Trigger rebound springs are common to all Smith & Wesson J, K, L and N frame revolvers. These springs greatly influence the double action trigger pull which is a major concern of competitive shooters. W.C. Wolff company offers reduced power rebound springs rated from 12 to 16 pounds. For reference, the factory rebound spring is 18 pounds. These springs lighten trigger and let-off functions for smoother and easier trigger pull.
    Note: The Hammer Spring in this kit measures 1.650"


    Centerfire Revolvers Only

    Note: Springs will not fit and function in Bodyguard J Frame with polymer frame.

    Wolff 17125..... $14.95 Free (USA ONLY) Shipping !

    J-Frame 17125 Spring Pak

    SMITH & WESSON .22 Caliber J-FRAME REVOLVER
    MODELS 317, 650, 651 RIMFIRE MODELS

    Shooters Pak - Reduced Power - Stock Number 17126 -

    This pak for rimfire models contains 1 each 9 pound reduced power hammer spring and 1 each 13, 14 and 15 pound reduced power rebound springs allowing adjustment for lighter and smoother trigger and hammer action.

    Note:Rimfire models 317, 650, 651 have a 12 Lb. factory hammer spring.
    The Hammer Spring in this kit measures 1.750"

    Wolff 17126..... $14.95 Free (USA ONLY) Shipping !

    .22 J-Frame Revolver Kit 17126

    Hi Lance,
    I installed the shims in the J-frame last night—unfortunately it won’t accept the right-side hammer shim because the transfer bar is too close. (Am sure two would work fine with the hammerless models.)
    I just used a .006” shim on the left side only and it worked out fine. As with the SP101, I am well satisfied and amazed by the improvement.
    Dennis in NC

    Hi Lance, the Shim Kit is incredible!
    I can only assume that they are very difficult to make. Sure glad I found them. The trigger on my 31-1 was rubbing on the frame and one .003 shim took care of it.
    Well worth the price! Thanks again, Cliff in TX

    BOXJBT#2

    Joe Berk J Hand Replacement Blog Photo

    BLOG TIP: Smith and Wesson J Frame Hand Replacement

    Click on Link Photo Link Right for ExhaustNotes "Tales of the Gun" Blog on S&W J Frame Hand

    If you have Cylinder Timing Issues, and want to fit a New Hand on your revolver, Joe Berks ExhaustNotes Blog shows you what to do ~ Click to Open in New Tab

    Click Here for Joe's Blogsite Tales of the Gun and Please leave a comment on Joe's Blog
    Don't Forget to tell him Lance at TriggerShims.com Sent You!


    BOX~S&WTool

    SMITHMASTER™
    TRIGGER SPRING TOOL FOR S&W® REVOLVERS

    SMITHMASTER™ - TRIGGER SPRING TOOL FOR S&W® REVOLVERS

    Have you ever experienced a Smith and Wesson® trigger spring flying past your eyeball, on it's way to heaven know's where ? Or perhaps you've jammed a makeshift tool into your hand while trying to install a S&W® trigger spring and rebound? Not a fun thing! Anyone who's worked on S&W's most likely has a memory or two of flying springs!

    The SmithMaster™ takes the worry out of changing S&W® Trigger springs. Works on all J,K,L, and N Frame revolvers.

    The SmithMaster™ is a unique, double ended tool designed for easy, trouble free removal and installation of the S&W® rebound/triggerspring assembly. One end of the tool allows CONTROLLED REMOVAL of the rebound/trigger spring.

    The other end allows CONTROLLED INSTALLATION, the trickiest part of the whole operation. No more trigger springs flying out and getting lost! The Smithmaster™ completely controls the spring, for worry free installation. Great for routine maintenance, and trigger jobs; especially usefull for trying different weight aftermarket trigger return springs, for a lighter, smoother trigger pull

    Man sized Delrin main body/handle has deep "Gripper Grooves" for sure control. Removal and installation tool heads are hardened tool steel for long life, and are coated to prevent frame marring. Approx. 8" OAL. Very Thorough Instructions included.

    It's the finest trigger spring tool ever made for S&W® Revolvers!
    There is nothing that compares to it!

    "This Spring Tool is a Must-Have to change the Trigger Spring on S&W K, L, N and J Frame Revolvers, Makes Disassembly and Reassembly a Breeze, Well Made and Worth Every Penny!"
    ~ Ralph the Gunsmith in Michigan Center

    Click Here for this tool at GunSmither Tools


    TECH TIP: TOOL VIDEO

    Gunsmither Spring Removal Tools

    http://www.Gunsmithertools.com

    Link to GunSmither Tools


    TriggerShims Custom made Trigger, Hammer, Cylinder and Yoke Shims for the Smith & Wesson J Frame Revolver
